vSAN 6.7 Upgrade Considerations

On April 17, 2018, VMware released vSphere 6.7. This includes vCenter, ESXi, and of course vSAN. A lot of people are looking to upgrade in order to take advantage of the new features, and enhancements; primarily the H5 client… good bye flash client! Links to more info on what’s new for vSphere and vSAN.

From an HMTL 5 client perspective, the feature parity is about 95%. For vSAN alone, it is about 99%, as we are only missing Configuration Assist, which is still available via the flash client.

I see a lot of people getting confused, and still believe that vSAN is a separate upgrade, just like traditional storage. Fortunately, vSAN is in the kernel, so once you upgrade ESXi you have also upgraded vSAN. Boom!!! Even though the version numbers may not be exact between ESXi and vSAN, they still go hand-in-hand. With that, it is important to understand the steps necessary for a vSAN upgrade.

Based on the nature of vSAN, we need to follow the vSphere upgrade path. This includes checking the VMware Product Interoperability Matrices, not only with your current versions against the versions you are going to upgrade to, but also all the other VMware products such as NSX, SRM, vROps, etc.



Upgrade Process Overview

From an upgrade process perspective, you have options. You can migrate your Windows vCenter to the vCenter Appliance (recommended). If you already have the vCenter Appliance, you can either do an in-place upgrade, or create a new vCenter if you want to migrate your hosts over to a fresh new vCenter install. Here is more info on vSphere upgrades.

  1. Upgrade PSC
  2. Upgrade, Migrate, or deploy new vCenter
    1. Depends on current version
  3. Upgrade ESXi
    1. This will also upgrade vSAN (easy, right?)
  4. Upgrade vSAN on-disk Format (ODF)

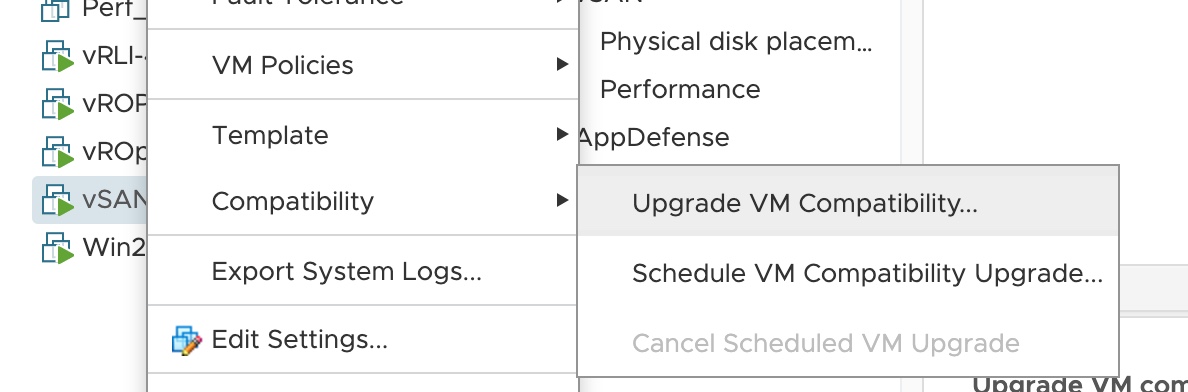

  5. Upgrade VMware tools
  6. Upgrade vDS



As previously discussed, you will need to check the Product Interoperability Matrix to make sure all your products can run on vSphere 6.7. Don’t shoot from the hip, and start upgrading before you have done proper research.



I mentioned the choice of migrating hosts to a new vCenter. This is something I do quite often in my labs, and it is a simple process.

Migration Process Overview

  1. Export vDS configuration (including port groups)
  2. Copy licenses from old vCenter
  3. Configure new vCenter
  4. Create Datacenter in vCenter
  5. Create a Cluster and enable vSAN on it
    1. If you currently have other services enabled, they will have to be enabled on the new vCenter as well prior to moving the hosts.
  6. Add licenses
    1. Assign license to vCenter
    2. Assign vSAN license to cluster asset
  7. Create vDS on the new vCenter
  8. Import configuration and port groups to new vCenter
  9. On the new vCenter, add hosts
    1. No need to disconnect hosts on the old vCenter, they will disconnect after connecting to the new vCenter.
    2. Confirm ESXi license or assign a new one.
  10. Connect the hosts to the vDS (imported)
    1. Make sure you go through and verify assignment of uplinks, failover order, vmkernel ports, etc.
  11. Lastly, you will need to tell vSphere that this new vCenter is now authoritative
    1. You will get an alert about this



vSAN Perfomance
HTML 5 Client

HTML 5 – vSphere and ESXi Host Web Clients

H5The wait is over (almost). Since the introduction of vSphere Web Client, many admins have slowed down the adoption of the Web Client as well as updates to vSphere due to the performance of said client.

VMware has released a couple of flings in relation to this problem. One of them was the host web client, where you can manage your hosts directly without the need to install the vSphere client. This fling is now part of the latest update to vSphere 6.0 U2. A few days ago, VMware released a similar option for vCenter. Both of these options are based on HTML 5 and javascript.

Host Web Client

Like I mentioned before, starting with vSphere 6.0 U2, the host web client is already embedded into vSphere. If you do not have this update you can still download the OVA and access the host web client that way. Currently it only works if you have vSphere 6.0+ but once version 5.5 U3 is released, it will also work with that version. Here is a link to download the fling.

To access the web client, you will need to add “/ui” at the end of the name/ip address of your host. For example https://<host-name-or-IP>/ui

The client is very responsive and has a nice UI. Not all the features are currently supported, but more will be coming at some point in the near future.

host_ui



vCenter Web Client

This HTML web client is only available as a fling at the moment. You will need to deploy an OVA and register the appliance with the vCenter that you would like to manage. Being a fling, not all features are included. It basically focuses on VM management, but I am sure they are working to port all the features over at some point (I hope).

To deploy this ova, you will need to enable SSH and Bash Shell on your VCSA. You can do both from the VCSA web UI. If you are running Windows based vCenter refer to the Fling documentation here.

vcsa_uI-shell

Prior to going through the configuration you will need to

  1. Create an IP Pool (If deploying via C# Client)
    • Note: I deployed using Web Client and didn’t create the IP Pool for me automatically as it is supposed to, so double check you have an IP Pool before powering on the appliance
  2. Deploy the OVA

IP_Pool

After deploying the OVA, creating an IP Pool, and enabling both SSH and Bash Shell on VCSA, it is time to configure the appliance.

  • SSH to the IP address you gave to the appliance using root as the user and demova as the password
  • Type shell to access Bash Shell
  • run the following command in Bash Shell
    • /etc/init.d/vsphere-client configure –start yes –user root –vc <FQDN or IP of vCenter> –ntp <FQDN or IP of NTP server>
  • If you need to change the default password for your root account, you can run the following command from bash shell
    • /usr/bin/chsh -s “/bin/bash” root
  • answer the question by answering YES
  • and enter the credentials for your vCenter


H5_deploy1

H5_deploy2



The HTML Web Client is pretty awesome, I gotta say, even if not all the features are there yet. It is super clean, and responsive. I can’t wait for it to be embedded with a full feature set.



H5_1

H5_2

Plan for vSphere core dump on diskless hosts

BootInstalling VMware vSphere on hardware come with many options when it comes to the location of the many partitions necessary for ESXi. ESXi can be installed on USB, SD (mini) cards, local storage, and boot from LUNs. Before you deploy your ESXi hosts, you should be thinking about your design and the limitations (is any) of each of the boot options.

Remember that ESXi has several partitions that are created during its installation.

7 Partitions:

  1. System Partition
  2. Linux Native – /scratch
  3. VMFS datastore
  4. n/a
  5. Linux Native /bootbank
  6. Linux Native /altbootbank
  7. vmkDiagnostics
  8. Linux Native /store

One thing to note is that partition 2 & 3 (/scratch & VMFS) are not present on the image below. This is because my ESXi host was installed on an SD card.

ESXi_Partitions



This post will focus on the vmkDiagnostics partition. VMware recommends that this partition is kept on local storage unless it is a diskless installation, such as boot from SAN. I have seen a rapid increase on boot from SAN as more and more people are transitioning into Cisco’s UCS blades. So, if you are doing this or planning on booting from SAN, make sure that you create a core dump partition for your hosts. You have a few options to do this.

  • You could have the core dumps on the boot LUN; however, it is recommended that a separate LUN is created for this partition.
    • Independent HW iSCSI only (keep reading).
  • If you set the diagnostic partition to be at the boot LUN, make sure only that host has access to it.
    • This should already be the case anyway. A boot LUN should only be accessible to the specific host.
  • IF you create a separate LUN for the diagnostic partition, you can share this LUN among many hosts.
  • You can also set up a file as a core dump location on a VMFS datastore (see caveat below).



That sounds pretty easy right?!? Yes but wait, there is a big caveat here.

You CANNOT place the diagnostic partition on any of the options above if using software iSCSI or hardware dependent initiators (iBFT). This can only be done via independent hardware iSCSI. More info here. This is not version dependent at the time this post was written.



Now what?

If do not have any hardware HBAs, you have a couple of options.

  1. The recommended option is to set up ESXi Dump Collector
    • Requires configuration on vCenter (Windows and VCSA)
    • Available for vSphere 5.0 and later
    • Consolidates logs from many hosts
    • Easily deployed via Host Profiles or esxcli commands
  2. You could also put this on USB storage, but this requires disabling the USB Arbitrator service, which means that you will not be able to use USB passthrough on any VM.
    • I personally wouldn’t recommend this option.

Troubleshooting vSphere PSOD

VMware_PSOD The Screen of Death, as most of us know it as, is the result of a system crash. Windows has his famous Blue Screen of Death (BSOD), and VMware has a purple screen of death (PSOD). Of course there is also a Black Screen of Death, which is usually when Windows systems are missing a boot file or one or more of those files have become corrupted. Although there is a range of colors, the problem for many is How do I fix this? How do I know what caused this?

Many admins start with the obvious and simply reboot the machine hoping it was a hiccup, but chances are, there is a bigger problem going on that needs addressed. In VMware, just like other systems, a core dump file is created when the stop error is generated. This is where you start digging…

Where is my DUMP…file?!?

So, during the purple screen, the host is writing the dump file to a previously created partition called VMKcore. There is a chance that the core dump file won’t be written due to internal problems, so it is always a good idea to take a screen shot of the PSOD. Exporting the core dump file can be done via CLI, manually from vCenter path for both Windows and/or appliance, as well as vSphere Client and WebClient; which is the preferred method from most admin since it is so simple to do.

To export the logs from vSphere Web Client, use the following steps:

  • Open vSphere Web Client > Hosts & Clusters > Right click on vCenter > Export System Logs…

Sys_Logs

  • Choose the host that had the PSOD > Next

Sys_Logs_ESXi

  • Make sure you select CrashDumps, all others are optional

Sys_Logs_CrashDump



Once you have the dump file (vmkernel-zdump….), its time to look for the needle in the haystack. There are a lot of entries, and this file can be overwhelming to many people, but don’t stress, it is quite simple to find it. The first logical step is to find the crash entry point You can use the time when you noticed the PSOD or you can simply search within the log file for “@bluescreen”.

Find_@Bluescreen

Once you find this, you will see the exact cause for the PSOD. In the screenshot below, you can see that the error generated is in relation to E1000. You should automatically think vNIC/Drivers, as well as looking online for any VMware KB articles regarding the errors generated. In this case, there is a known issue for different versions of vSphere that have already been patched; so keeping up to date on patches is very important.

E1000_PSOD



The issue that triggered the PSOD in this environment was related to updates (fix) not being applied. The work around was to not use E1000e NIC on the VM but rather VMXNET3. Also, you HAVE to install the VMTools on your VMs. The VMTools have drivers needed for your VM to work properly. In this particular instance, VMTools were not installed on the VM. Once the tools were installed and the vNIC was switch to VMXNET3, the issue was resolved.



Refer to VMware’s KB2059053 for more info.

Deploying VCSA 6.0: Mind the Gap

VMware’s VCSA 6.0 brings a lot of enhancements compared to previous versions. I would seriously consider deploying VCSA in a production environment in order to replace the Windows flavor. For those not familiar with VCSA, this is the virtual appliance option to deploy vCenter in an environment. It reduces the time needed to deploy vCenter and offers an integrated database for no additional cost. Although this post may not be entirely technical, it will allow you to be aware of possible constraints that will prevent you from deploying VCSA before you invest too much time on it.

One of the great things about deploying VCSA over the Windows vCenter is that you will reduce the cost by not deploying a Windows VM as well as having to purchase an MSSQL license. VCSA sounds great so far, but there are some gaps that you need to be aware of before deploying this in an environment.



VCSA_mind_the_gap

Some of the shortcomings of VCSA are primarily related to its nature of not being a Windows VM. For some deployments Windows vCenters have been used to also host the VUM (Update Manager) components, as well as programs that provide additional capabilities to the virtual environment such as VSC for NetApp storage, among others. This means that you would still need to deploy a Windows VM to host VUM as well as VSC in this case. Even though you would still be deploying such VM, the need for a MSSQL server/instance is not required which translates in savings.

Another aspect to keep in mind is the installation and migration from previous versions. There is no in-place upgrade from previous versions, but migrations are possible. With this in mind, you may want to consider to just start with a new, fresh environment. I would. Same applies to the Windows flavor. The installation method now comes as an ISO image. This may cause some confusion. In order to deploy VCSA, the ISO is mounted from a Windows system (can be your computer) and installation can be done remotely.

Before installation, make sure you install the Client Integration Plugin located within the ISO under the vcsa folder.

VCSA_CIP







Start the installation by launching the vcsa-setup.html file from the ISO. A Web UI opens up after a few seconds, and gives you the option to install and ‘Upgrade” (migrate). During installation, just provide the target Host information, and the rest of the information needed for the installation. Make sure the VCSA appliance has a proper network connection and you can reach it from the computer deploying the appliance.

vcsa_setupvcsa_UI

















Both Windows and appliance vCenter offerings have the same scalability numbers as it relates to hosts, VMs, clusters, etc.

In conclusion, VCSA is a great choice for vCenter, but just be aware of some of the constraints of not using the Windows option. By the way the Web UI in vSphere 6 is soooo much faster!!! I’m just saying.
